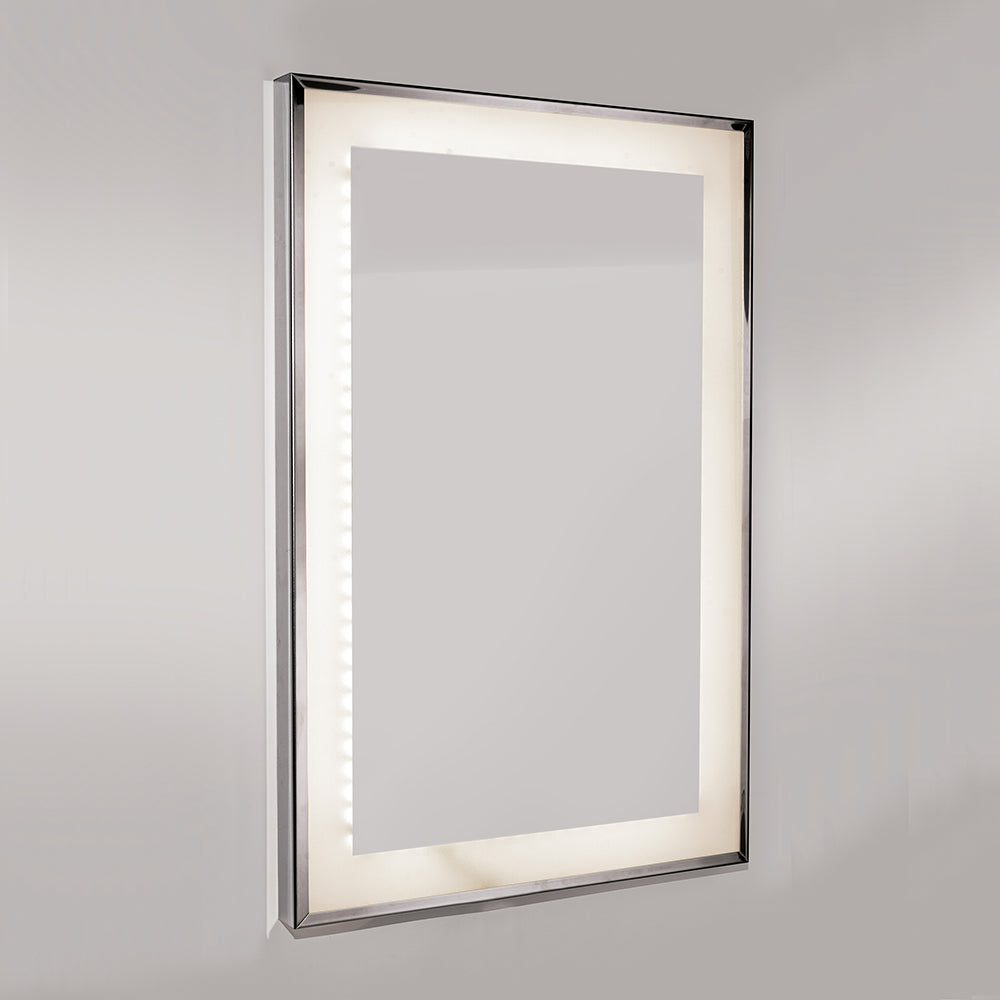

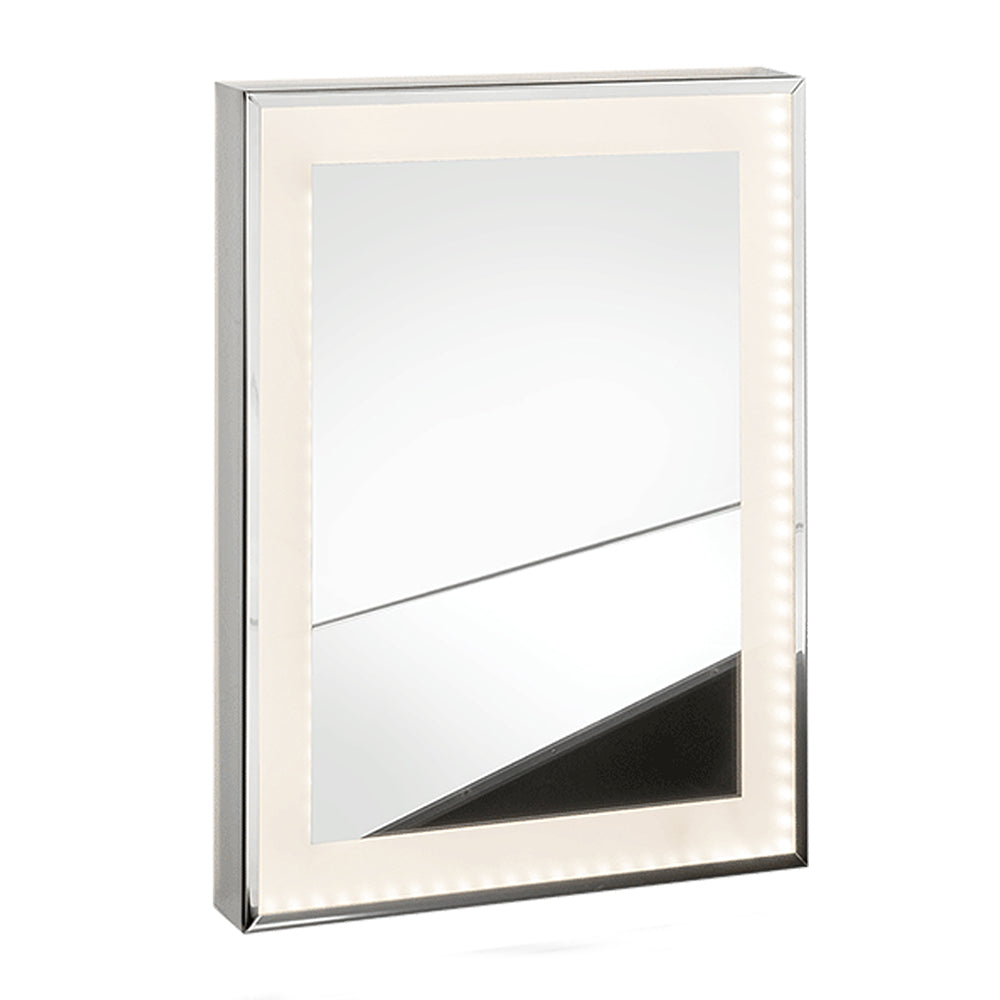

Framed LED Bathroom Mirror – Polished Stainless Steel
Framed LED Bathroom Mirror – Polished Stainless Steel
A bathroom mirror with a polished stainless steel frame for a coordinated vanity area. Choose the size that suits your basin or vanity and combine it with KAPITAN bath accessories.
Material and finish
4 mm mirror glass, with an AISI 304 stainless steel frame. Frame finish: Polished Stainless Steel.
LED lighting: 3000 K warm white, 9.6 W/m, 120 LEDs/m. Power consumption and light output vary by size, as shown below.
Dimensions
| Size | SKU | LED power | Light output |
|---|---|---|---|
| 40 x 40 cm | 4040961111 | 11 W | 600 lumen |
| 40 x 50 cm | 4050961111 | 13 W | 700 lumen |
| 40 x 60 cm | 4060961111 | 15 W | 800 lumen |
| 40 x 70 cm | 4070961111 | 17 W | 900 lumen |
| 40 x 80 cm | 4080961111 | 18 W | 1000 lumen |
| 40 x 90 cm | 4090961111 | 20 W | 1100 lumen |
| 40 x 100 cm | 40100961111 | 22 W | 1200 lumen |
| 50 x 50 cm | 5050961111 | 15 W | 800 lumen |
| 50 x 60 cm | 5060961111 | 17 W | 900 lumen |
| 50 x 70 cm | 5070961111 | 18 W | 1000 lumen |
| 50 x 80 cm | 5080961111 | 20 W | 1100 lumen |
| 50 x 90 cm | 5090961111 | 22 W | 1200 lumen |
| 50 x 100 cm | 50100961111 | 24 W | 1300 lumen |
| 60 x 60 cm | 6060961111 | 18 W | 1000 lumen |
| 60 x 70 cm | 6070961111 | 20 W | 1100 lumen |
| 60 x 80 cm | 6080961111 | 22 W | 1200 lumen |
| 60 x 90 cm | 6090961111 | 24 W | 1300 lumen |
| 60 x 100 cm | 60100961111 | 26 W | 1400 lumen |
| 70 x 70 cm | 7070961111 | 22 W | 1200 lumen |
| 70 x 80 cm | 7080961111 | 24 W | 1300 lumen |
| 70 x 90 cm | 7090961111 | 26 W | 1500 lumen |
| 70 x 100 cm | 70100961111 | 28 W | 1600 lumen |
| 80 x 80 cm | 8080961111 | 26 W | 1500 lumen |
| 80 x 90 cm | 8090961111 | 28 W | 1600 lumen |
| 80 x 100 cm | 80100961111 | 30 W | 1700 lumen |
| 90 x 90 cm | 9090961111 | 30 W | 1700 lumen |
| 90 x 100 cm | 90100961111 | 32 W | 1800 lumen |
| 100 x 100 cm | 100100961111 | 34 W | 1900 lumen |
Installation
Mounting plates are fitted to the back. Fix the wall hooks using screws and wall plugs suitable for the wall; adhesive alone must not support the mirror. Can be installed vertically or horizontally.
View mounting instructions (PDF)
Warranty
Covered by the applicable statutory warranty. Mirrors are not covered by the KAPITAN 20-year limited material warranty.
Installation & instructions
Use the instructions and mounting components supplied with your specific model. Select wall fixings suitable for the surface and check for concealed pipes and cables before drilling.
If your model is supplied with a 3M adhesive mounting kit, use it only on a suitable smooth surface and allow 48–72 hours before loading. Adhesive fixing is not suitable for every model or surface.
Warranty
Mirrors are covered only by the applicable statutory warranty. The KAPITAN 20-year limited material warranty does not apply to mirrors.
Warranty enquiries: kapitanltd@gmail.com
